Wafer Frame Cassette Guide: Uses, Types, and Selection Tips
A wafer frame cassette is used to hold, organize, and transfer wafer frames during semiconductor back-end processes. It is commonly used after wafers are mounted on dicing tape and fixed to a wafer frame, dicing ring, tape frame, or metal frame.
At this stage, the wafer is no longer handled like a bare wafer. The frame, tape, and wafer must stay stable during dicing, cleaning, inspection, storage, and die pick-up preparation. A wafer frame cassette keeps each frame separated in slots, making it easier to move multiple framed wafers without stacking them directly or touching each frame too often.
For production teams, the cassette is not just a storage carrier. It helps make frame handling more consistent, keeps batches organized, and reduces unnecessary contact during repeated process movement.
This article explains what a wafer frame cassette is, where it is used, how it differs from related carriers, and what buyers should check before choosing one.
What Is a Wafer Frame Cassette?
A wafer frame cassette is a slotted carrier designed for wafer frames, dicing rings, or tape frames. Each slot holds one frame, keeping the frames separated and easier to load, unload, transfer, or store.
Depending on the supplier or process, it may also be called:
- Wafer frame cassette
- Frame cassette
- Dicing frame cassette
- Tape frame cassette
- Metal frame cassette
- Wafer frame carrier
- Wafer ring cassette
The name may vary, but the function is similar: it keeps framed wafers organized and helps reduce unnecessary handling contact.
Why Wafer Frame Cassettes Are Used
In wafer dicing and post-dicing handling, stability matters. Once the wafer is mounted on tape and supported by a frame, poor handling may affect the frame, tape condition, wafer surface, or die position.
A wafer frame cassette helps production teams:
- Keep wafer frames separated
- Move multiple frames at one time
- Reduce frame-to-frame contact
- Support cleanroom transfer
- Maintain frame sequence during batch handling
- Reduce manual handling of individual frames
- Improve loading and unloading consistency
In daily use, the issue is not only whether the cassette can hold the frame. It also needs to make repeated handling easier for operators and stable enough for the actual process flow.

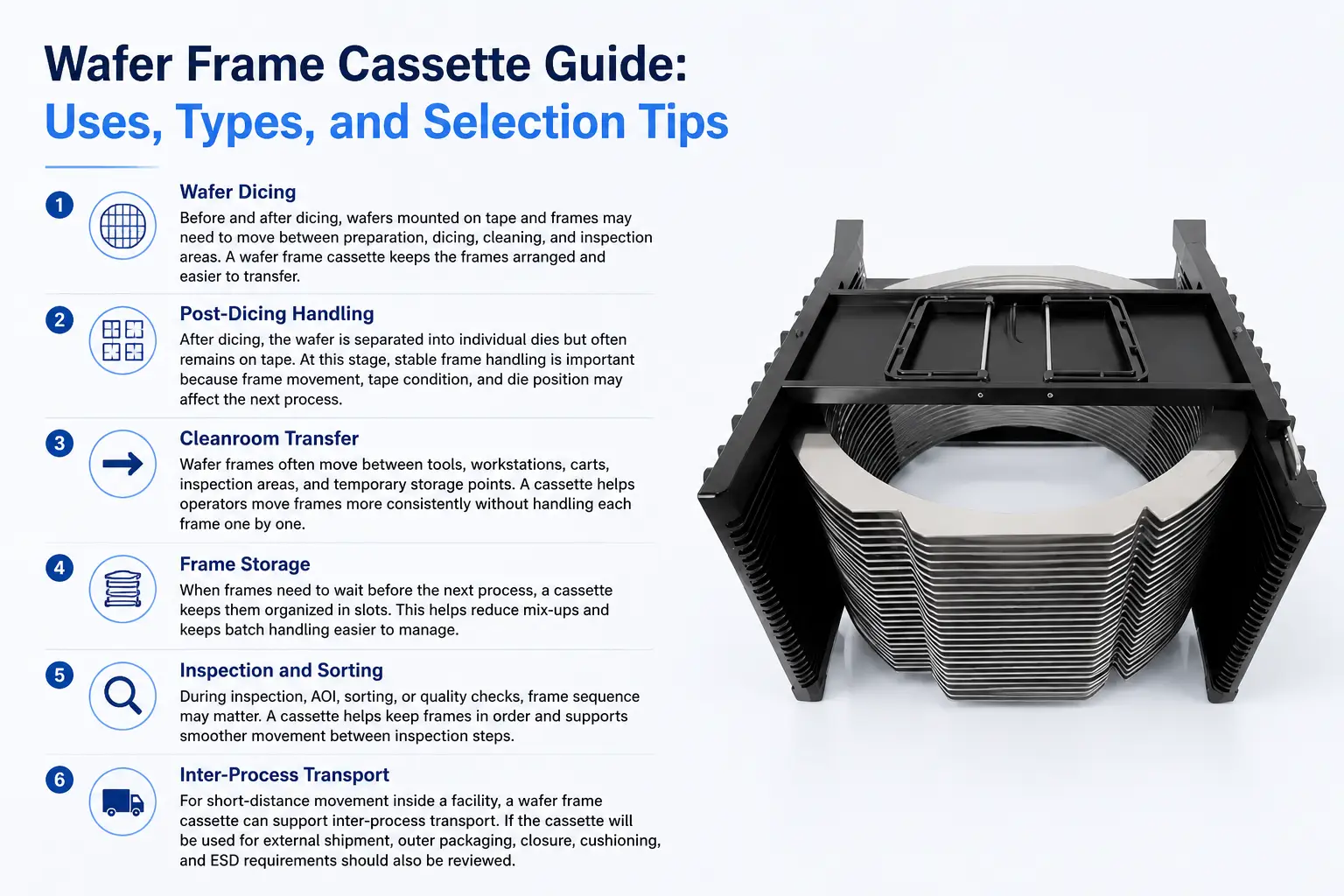

Common Uses of Wafer Frame Cassettes
1. Wafer Dicing
Before and after dicing, wafers mounted on tape and frames may need to move between preparation, dicing, cleaning, and inspection areas. A wafer frame cassette keeps the frames arranged and easier to transfer.
2. Post-Dicing Handling
After dicing, the wafer is separated into individual dies but often remains on tape. At this stage, stable frame handling is important because frame movement, tape condition, and die position may affect the next process.
3. Cleanroom Transfer
Wafer frames often move between tools, workstations, carts, inspection areas, and temporary storage points. A cassette helps operators move frames more consistently without handling each frame one by one.
4. Frame Storage
When frames need to wait before the next process, a cassette keeps them organized in slots. This helps reduce mix-ups and keeps batch handling easier to manage.
5. Inspection and Sorting
During inspection, AOI, sorting, or quality checks, frame sequence may matter. A cassette helps keep frames in order and supports smoother movement between inspection steps.
6. Inter-Process Transport
For short-distance movement inside a facility, a wafer frame cassette can support inter-process transport. If the cassette will be used for external shipment, outer packaging, closure, cushioning, and ESD requirements should also be reviewed.
Wafer Frame Cassette vs Wafer Frame Box
A wafer frame cassette and a wafer frame box are related, but they are not used in the same way.
A wafer frame cassette is mainly used for slot-based organization and process transfer. A wafer frame box is more focused on enclosed protection, storage, or shipment.
| Item | Wafer Frame Cassette | Wafer Frame Box |
|---|---|---|
| Main Purpose | Organize multiple wafer frames in slots | Protect wafer frames inside an enclosed box |
| Best For | Process transfer, storage, cleanroom handling | Storage, protection, transport, shipment |
| Handling Style | Slot-based, batch-oriented handling | Box-based protection and containment |
| Selection Focus | Frame size, slot pitch, loading direction | Frame fit, cover, closure, packaging |
In simple terms, use a wafer frame cassette when the process needs organized handling. Use a wafer frame box when the main need is enclosed protection.
Wafer Frame Cassette vs Wafer Cassette
A standard wafer cassette is usually designed for bare wafers or processed wafers. A wafer frame cassette is designed for wafers that are already mounted on frames.
This difference matters because a framed wafer is larger than the wafer itself. The cassette must match the outer frame size, not only the wafer diameter.
| Comparison | Wafer Cassette | Wafer Frame Cassette |
|---|---|---|
| Holds | Bare or processed wafers | Wafer frames, dicing rings, or tape frames |
| Selection Basis | Wafer diameter | Frame outer size, thickness, and slot fit |
| Common Process | Wafer handling or front-end related processes | Dicing, post-dicing, and back-end handling |
| Design Focus | Wafer slot support | Frame support and frame separation |
If the wafer is already mounted on a frame, choosing only by wafer size can lead to poor fit. Frame dimensions should always be checked first.
Main Types of Wafer Frame Cassettes
1. Standard Wafer Frame Cassette
A standard wafer frame cassette is used for general frame storage and internal transfer. It is suitable when the frame size, slot count, slot pitch, and handling direction match the existing process.
2. Metal Frame Cassette
A metal frame cassette may be used when higher rigidity, longer service life, or repeated handling durability is required. It can be suitable for production environments where the cassette is used frequently.
3. Anti-Static Wafer Frame Cassette
An anti-static wafer frame cassette is used when ESD control is required. This may be important for processed wafers, diced wafers, or ESD-sensitive devices mounted on frames.
4. Custom Wafer Frame Cassette
A custom wafer frame cassette is used when standard cassette dimensions or slot structures do not match the process. Custom design is often needed for special frame sizes, slot pitch, loading direction, material requirements, or equipment compatibility.

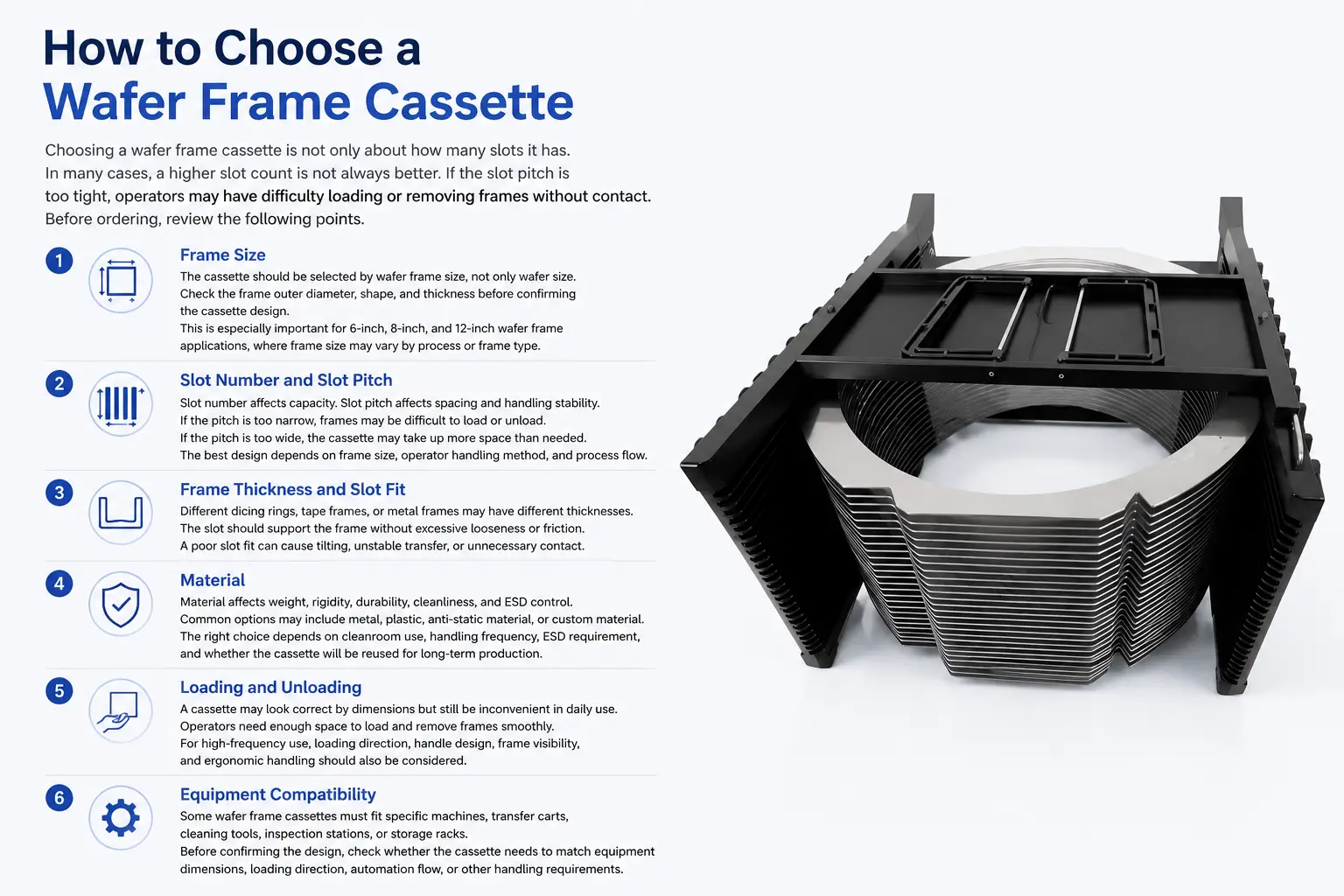

How to Choose a Wafer Frame Cassette
Choosing a wafer frame cassette is not only about how many slots it has. In many cases, a higher slot count is not always better. If the slot pitch is too tight, operators may have difficulty loading or removing frames without contact.
Before ordering, review the following points.
1. Frame Size
The cassette should be selected by wafer frame size, not only wafer size. Check the frame outer diameter, shape, and thickness before confirming the cassette design.
This is especially important for 6-inch, 8-inch, and 12-inch wafer frame applications, where frame size may vary by process or frame type.
2. Slot Number and Slot Pitch
Slot number affects capacity. Slot pitch affects spacing and handling stability.
If the pitch is too narrow, frames may be difficult to load or unload. If the pitch is too wide, the cassette may take up more space than needed. The best design depends on frame size, operator handling method, and process flow.
3. Frame Thickness and Slot Fit
Different dicing rings, tape frames, or metal frames may have different thicknesses. The slot should support the frame without excessive looseness or friction.
A poor slot fit can cause tilting, unstable transfer, or unnecessary contact.
4. Material
Material affects weight, rigidity, durability, cleanliness, and ESD control.
Common options may include metal, plastic, anti-static material, or custom material. The right choice depends on cleanroom use, handling frequency, ESD requirement, and whether the cassette will be reused for long-term production.
5. Loading and Unloading
A cassette may look correct by dimensions but still be inconvenient in daily use. Operators need enough space to load and remove frames smoothly.
For high-frequency use, loading direction, handle design, frame visibility, and ergonomic handling should also be considered.
6. Equipment Compatibility
Some wafer frame cassettes must fit specific machines, transfer carts, cleaning tools, inspection stations, or storage racks.
Before confirming the design, check whether the cassette needs to match equipment dimensions, loading direction, automation flow, or other handling requirements.
Wafer Frame Cassette Selection Map
Use this table as a quick reference when choosing a wafer frame cassette.
| Handling Need | Recommended Focus | What to Check |
|---|---|---|
| General frame storage | Standard wafer frame cassette | Frame size, slot number, slot pitch |
| Post-dicing handling | Stable slot support | Frame fit, movement control, tape condition |
| Cleanroom transfer | Clean material and easy handling | Material, weight, surface condition |
| ESD-sensitive process | Anti-static cassette option | ESD requirement, material, handling environment |
| Repeated production use | Rigid and durable structure | Material strength, cleaning method, reuse frequency |
| Special frame or equipment | Custom wafer frame cassette | Frame size, equipment fit, slot design, custom structure |
Custom Wafer Frame Cassette Options
Standard wafer frame cassettes do not fit every process. Custom design is usually needed when the existing cassette does not match the frame outer diameter, frame thickness, slot pitch, loading direction, or equipment layout.
Custom options may include:
- 6-inch, 8-inch, and 12-inch wafer frame applications
- Custom outer dimensions
- Custom slot number and slot pitch
- Custom frame support structure
- Metal or plastic material options
- Anti-static material or surface treatment
- Handle or cover design
- Labeling or identification support
- Equipment or automation compatibility
A custom wafer frame cassette can improve frame fit, reduce handling difficulty, and support more stable back-end production.
YJ Corevia Wafer Frame Cassette Solutions
YJ Corevia provides wafer frame, dicing ring, wafer ring, wafer frame cassette, wafer frame box, and custom semiconductor handling solutions.
When customers are not sure which cassette design is suitable, YJ Corevia can review the wafer frame size, frame thickness, slot number, slot pitch, material preference, ESD need, cleanroom use, and process flow before recommending a suitable solution.
YJ Corevia supports 6-inch, 8-inch, and 12-inch wafer frame applications, as well as custom cassette solutions based on frame size, capacity, slot design, material, and handling requirements.
Our goal is to help customers choose a wafer frame cassette that fits the process, protects the frame, and supports stable semiconductor back-end handling.
Conclusion
A wafer frame cassette is used to hold, organize, transfer, and protect wafer frames during semiconductor back-end processes. It is especially useful for wafer dicing, post-dicing handling, cleanroom transfer, inspection, cleaning, and frame storage.
The right wafer frame cassette should be selected based on frame size, slot number, slot pitch, frame thickness, material, ESD requirement, loading method, and equipment compatibility. For framed wafers, buyers should choose by wafer frame size instead of only wafer diameter.
YJ Corevia provides wafer frame cassettes and custom semiconductor handling solutions for customers who need stable frame support, clean handling, and process-compatible design.
Contact us today to discuss your wafer frame cassette size, slot design, material requirement, ESD need, and custom semiconductor handling requirements.
FAQ
1. What is a wafer frame cassette?
A wafer frame cassette is a slotted carrier used to hold wafer frames, dicing rings, or tape frames during semiconductor back-end handling, storage, transfer, and process movement.
2. What is a wafer frame cassette used for?
It is used for wafer dicing, post-dicing handling, cleanroom transfer, frame storage, inspection, cleaning, and movement between workstations or equipment.
3. What is the difference between a wafer frame cassette and a wafer cassette?
A wafer cassette usually holds bare or processed wafers by wafer diameter. A wafer frame cassette holds wafers mounted on wafer frames or dicing rings, so it must be selected by frame size.
4. What is the difference between a wafer frame cassette and a wafer frame box?
A wafer frame cassette is mainly used for slot-based organization and process transfer. A wafer frame box is more focused on enclosed protection, storage, or shipment.
5. How do I choose a wafer frame cassette?
Start by checking frame size, frame thickness, slot number, slot pitch, material, ESD requirement, loading method, and equipment compatibility.
6. Can wafer frame cassettes be customized?
Yes. Wafer frame cassettes can be customized based on frame size, capacity, slot pitch, material, anti-static requirement, handle design, cover design, and equipment compatibility.
