Dicing Ring Guide: Wafer Dicing Support, Tape Frame & Custom Ring Solutions
A dicing ring is a precision support ring used in semiconductor back-end processing. It holds dicing tape or UV film in place while the wafer is cut into individual dies.
During wafer dicing, small issues such as tape looseness, ring deformation, poor flatness, or unstable wafer positioning can affect cutting accuracy. These problems may lead to edge chipping, die misalignment, wafer cracking, or lower yield.
For this reason, a dicing ring is not just a simple metal frame. It is part of the wafer handling system that supports wafer stability, tape tension, equipment compatibility, and post-dicing transfer.
Dicing rings may also be called wafer rings, dicing frames, tape frames, metal film frames, or ring frame wafer solutions. In this guide, we focus on their role in wafer dicing, die separation, and semiconductor back-end packaging.
What Is a Dicing Ring?

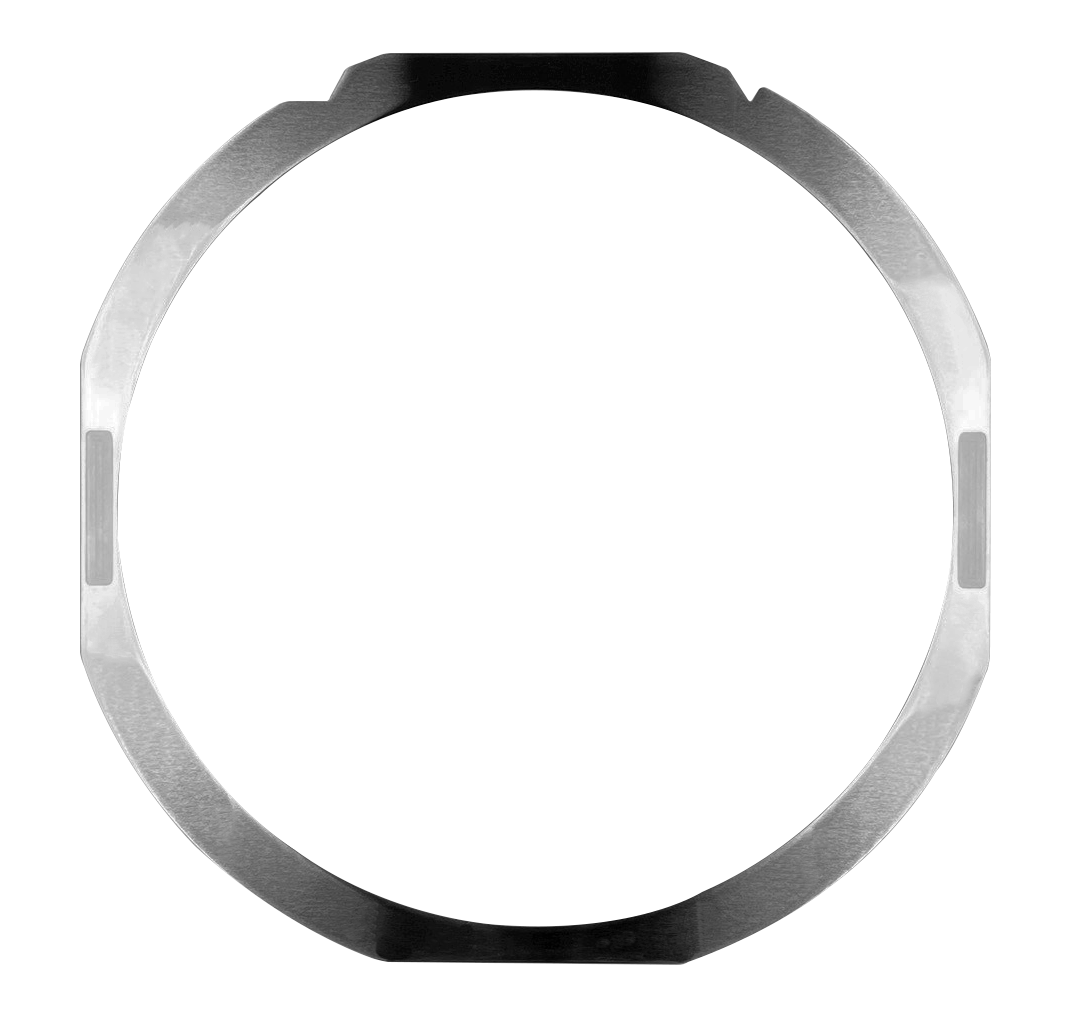

A dicing ring is a rigid ring-shaped frame used to secure dicing tape during wafer dicing. The wafer is mounted onto adhesive tape or UV-release film, and the film is fixed to the dicing ring. This creates a stable structure for cutting, cleaning, inspection, and die pick-up.
In a typical wafer dicing process, the dicing ring helps:
- Keep the dicing tape properly supported
- Hold the wafer in a stable position
- Reduce movement during cutting
- Keep separated dies organized after dicing
- Support safer transfer between process steps
Because wafer dicing requires high precision, the ring’s material, flatness, thickness, edge quality, and surface finish can affect process consistency.
Why Dicing Rings Matter in Wafer Dicing
Wafer dicing separates a semiconductor wafer into individual chips, also known as dies. Before cutting, the wafer is attached to dicing tape. The tape holds the wafer during cutting and keeps each die in position after separation.
However, dicing tape needs a stable frame to work properly. If the dicing ring is not rigid or flat enough, the tape may not mount evenly. This can affect wafer positioning and cutting accuracy.
A high-quality dicing ring helps improve:
- Wafer stability during blade dicing or laser dicing
- Dicing tape tension and support
- Die alignment after cutting
- Handling safety after dicing
- Process repeatability
- Equipment compatibility
- Long-term reuse efficiency
For semiconductor manufacturers, dicing ring quality can influence not only handling convenience but also production stability.
Dicing Ring vs Wafer Frame: What Is the Difference?
The terms dicing ring and wafer frame are closely related, but they do not always have the same search intent.
A wafer frame is a broader term. It may refer to a support frame used for wafer grinding, polishing, dicing, cleaning, inspection, storage, or transport.
A dicing ring is more process-specific. It usually refers to the ring used during wafer dicing, where dicing tape holds the wafer while it is cut into individual dies.
| Term | Meaning | Main Focus |
|---|
| Wafer Frame | General wafer support frame | Wafer handling, grinding, cleaning, dicing, transport |
| Wafer Ring | Ring-shaped wafer support frame | Wafer holding and handling |
| Dicing Ring | Frame used during wafer dicing | Cutting stability and die separation |
| Tape Frame | Frame used with adhesive tape | Tape mounting and dicing support |
| Metal Film Frame | Metal frame used with adhesive film | Wafer mounting and film support |
For a broader explanation of wafer frame structure, applications, and material options, please check our Wafer Frame Guide.
How a Dicing Ring Works with Dicing Tape
A dicing ring works together with dicing tape, UV tape, or adhesive film. The wafer is attached to the tape, while the tape is secured to the ring. A dicing ring holds the dicing tape in place, while the dicing tape securely holds the wafer during processing. The wafer is then cut into individual dies.
During blade dicing or laser dicing, the ring keeps the tape stable. After cutting, the separated dies remain attached to the tape in their original positions. This makes it easier to move the wafer to cleaning, inspection, die pick-up, or packaging.
A well-made dicing ring helps reduce:
- Wafer shifting
- Tape loosening
- Film deformation
- Die misalignment
- Edge chipping
- Handling damage
- Post-dicing contamination risk
This is why the dicing ring, tape, wafer size, and equipment requirements should be evaluated together.
Main Applications of Dicing Rings
Dicing rings are mainly used in semiconductor back-end manufacturing, especially during wafer dicing and post-dicing handling.
- Wafer Mounting
Before dicing, the wafer is mounted onto adhesive film. The dicing ring holds the film securely and provides a stable base before the wafer enters the dicing machine. - Blade Dicing
Blade dicing uses a high-speed cutting blade to separate the wafer into individual dies. The dicing ring supports the wafer and tape during mechanical cutting, helping reduce movement and vibration. - Laser Dicing
Laser dicing uses laser energy to cut or separate wafer material. Even though the cutting method is different, wafer alignment and film stability are still important. - Die Separation
After dicing, the wafer is divided into individual dies, but the dies remain attached to the tape. The ring keeps the die layout organized for the next process. - Cleaning and Inspection
Post-dicing wafers may go through cleaning, visual inspection, or quality checks. The dicing ring supports safer handling and reduces direct contact with the wafer surface. - Die Pick-Up and Packaging Preparation
During die pick-up, die position matters. A stable dicing ring helps maintain the original die layout and supports smoother downstream packaging. - Wafer Transport After Dicing
Dicing rings are also used during transfer between dicing equipment, cleaning stations, inspection tools, wafer frame boxes, and wafer frame cassettes.
Key Dicing Ring Specifications
When choosing a dicing ring, buyers should review more than the ring size. The ring must match the wafer, tape, machine, cassette, storage box, and production flow.
- Outer Diameter
The outer diameter must match the dicing equipment, mounting system, cassette, and handling tools. Incorrect dimensions may cause loading or positioning problems. - Inner Diameter
The inner diameter affects wafer support area, film exposure, and process clearance. It should be selected according to wafer size and application. - Thickness
Thickness affects rigidity and equipment fit. A ring that is too thin may deform more easily. A ring that is too thick may not fit certain tools or storage systems. - Flatness
Flatness is one of the most important quality factors. Poor flatness can cause uneven tape mounting, unstable wafer positioning, or cutting variation. - Surface Finish
Surface finish affects cleaning, appearance, handling, and tape contact. Common options include polished and matte finishes. - Material
Material affects rigidity, durability, corrosion resistance, cleaning performance, and reuse cycle. Stainless steel is commonly used for reusable metal dicing rings. - Edge Quality
Burrs, sharp edges, or rough finishing may damage dicing tape or create handling risk. Clean edge finishing is important for both safety and tape protection. - Engraving and Traceability
Laser engraving can mark product numbers, logos, batch codes, serial numbers, and manufacturing dates. This helps with production tracking, inventory control, and quality management.
Stainless Steel Dicing Ring Advantages
Stainless steel dicing rings are often used when manufacturers need strength, durability, and repeatable performance.
Key advantages include:
- High rigidity
- Good dimensional stability
- Long service life
- Reusable structure
- Suitable for repeated cleaning
- Lower deformation risk
- Good wear resistance
- CNC machining compatibility
- Laser engraving support
- Professional appearance
- Suitable for semiconductor back-end processes
For manufacturers using dicing rings repeatedly, stainless steel can reduce replacement frequency and support more consistent wafer handling.
YJ Corevia provides stainless steel wafer frame and dicing ring solutions for semiconductor wafer handling, including standard and custom designs.
Plastic Dicing Ring vs Metal Dicing Ring
Plastic and metal dicing rings can both be used in semiconductor-related processes, but they are selected for different needs.
| Comparison Item | Plastic Dicing Ring | Metal Dicing Ring |
|---|
| Rigidity | Lower to medium | Higher |
| Dimensional Stability | Depends on material | More stable |
| Reusability | Process-dependent | Strong reusable potential |
| Cleaning Resistance | Depends on material | Better for repeated cleaning |
| Initial Cost | Usually lower | Higher |
| Long-Term Value | Depends on usage | Better for repeated use |
| Custom Machining | More limited | Strong |
| Laser Engraving | Limited | Available |
| Best For | Lightweight or cost-sensitive use | Precision, durability, and long-term production |
For processes that require stronger rigidity, repeated cleaning, stable dimensions, and custom manufacturing, a metal dicing ring or stainless steel dicing ring is often preferred.
Standard Dicing Ring Sizes
Dicing ring size depends on wafer size, tape size, and equipment requirements. Common sizes include 6-inch, 8-inch, and 12-inch dicing rings.
- 6-Inch Dicing Ring
A 6-inch dicing ring is used for 6-inch wafer dicing and handling. It is suitable for smaller wafer formats still used in many semiconductor and electronic component processes. Common applications include wafer mounting, dicing, cleaning, inspection, and short-distance transfer. - 8-Inch Dicing Ring
An 8-inch dicing ring supports 8-inch wafer processing. Selection should consider flatness, tape compatibility, surface quality, material rigidity, equipment fit, and cleaning performance. - 12-Inch Dicing Ring
A 12-inch dicing ring is used for larger wafer formats and advanced back-end applications. Because larger wafers require stronger support, ring rigidity, flatness, and dimensional control become especially important. A reliable 12-inch dicing ring should provide stable tape support, reduced deformation risk, equipment compatibility, and safe post-dicing transfer.
Custom Dicing Ring Design and Manufacturing
Not every process can use a standard dicing ring. Some customers need special dimensions, thicknesses, geometries, or traceability markings to match their equipment and production flow.
YJ Corevia provides custom dicing ring and wafer frame manufacturing for semiconductor back-end applications.
Custom dicing ring options may include:
- Standard 6-inch, 8-inch, and 12-inch sizes
- Custom outer diameter, inner diameter, and thickness
- Special ring geometry based on equipment or process requirements
- Stainless steel material options
- Polished or matte surface finish
- Laser engraving for logos, serial numbers, batch codes, or manufacturing dates
- Custom packaging support
- Cleaning and refurbishment service for reusable rings
A custom dicing ring can improve equipment fit, wafer handling stability, traceability, and long-term process efficiency.
Why Flatness Matters for Dicing Rings
Flatness directly affects tape mounting and wafer stability. If the ring is warped, uneven, or deformed, the tape may not sit correctly. This can create process problems during cutting.
Poor flatness may increase the risk of:
- Uneven cutting
- Wafer movement
- Die edge damage
- Poor alignment
- Film instability
- Handling difficulty
- Lower yield
For reusable dicing rings, flatness should be checked during inspection and after repeated use. Proper manufacturing, cleaning, storage, and handling all help maintain ring performance.
Dicing Ring Surface Finish: Polished vs Matte
Surface finish may affect cleaning, handling, appearance, and process preference.
- Polished Dicing Ring
A polished dicing ring has a smooth, bright surface. It is often selected when customers need easier cleaning, reduced surface roughness, and a clean appearance. - Matte Dicing Ring
A matte dicing ring has a less reflective surface. It may be preferred for certain handling preferences, production environments, or customer specifications. - Which Surface Finish Should You Choose?
Both polished and matte surfaces can be suitable when the ring is properly manufactured, cleaned, and inspected. The best choice depends on cleaning requirements, handling habits, visual preference, and equipment or customer specifications.
Dicing Ring Cleaning and Reuse
One advantage of stainless steel dicing rings is that they can be reused after proper cleaning and inspection. This helps reduce replacement cost and supports long-term production efficiency.
A typical cleaning and reuse process may include:
- Tape removal
- Adhesive residue cleaning
- Surface cleaning
- Rust or stain inspection
- Flatness and dimensional inspection
- Surface polishing or refurbishment if needed
- Protective packaging for reuse
YJ Corevia supports wafer frame and dicing ring cleaning services. Proper cleaning can remove adhesive residue, restore surface condition, and extend the service life of reusable metal rings.
For high-volume semiconductor manufacturers, cleaning and refurbishment can help lower total operating cost while maintaining stable handling performance.
Common Problems Caused by Low-Quality Dicing Rings
A low-quality dicing ring can create hidden process risks. Even small defects may affect tape mounting, wafer stability, equipment fit, or reuse performance.
- Ring Deformation
A deformed ring may not hold the dicing tape evenly, which can affect wafer flatness and cutting stability. - Poor Edge Finishing
Sharp edges, burrs, or rough surfaces may damage tape or increase handling risk. - Inconsistent Dimensions
Incorrect outer diameter, inner diameter, or thickness may cause fit problems with dicing equipment, storage boxes, or wafer frame cassettes. - Poor Surface Quality
Surface defects may make cleaning harder and increase contamination risk. - Weak Reusability
A ring that cannot withstand repeated tape removal, cleaning, and handling may increase replacement cost. - Lack of Traceability
Without engraving or batch control, it becomes harder to manage usage history, cleaning cycles, and production lots.
Quality Control Points for Dicing Rings
For semiconductor-related applications, dicing rings should be inspected carefully before shipment and during reuse. A practical quality control checklist may include:
- Outer diameter and inner diameter inspection
- Thickness measurement
- Flatness check
- Surface finish inspection
- Edge and burr inspection
- Engraving verification
- Cleaning condition check
- Packaging protection check
These checkpoints help reduce the risk of equipment mismatch, tape damage, contamination, and unstable handling.
How to Choose a Dicing Ring Supplier
When selecting a dicing ring supplier, semiconductor manufacturers should compare more than price. A reliable supplier should understand wafer handling requirements, precision metal fabrication, cleaning needs, and custom production.
Important factors include:
- Semiconductor Manufacturing Experience
The supplier should understand wafer handling, dicing tape support, post-dicing transfer, and the quality requirements of semiconductor back-end processes. - Precision Metal Processing Capability
Look for stainless steel processing, CNC machining, stable dimensional control, flatness inspection, and clean edge finishing. - Surface Quality and Finish Control
A reliable supplier should provide consistent surface polishing, matte or polished finish options, and proper inspection to reduce contamination and handling risks. - Custom Dicing Ring Support
The supplier should support custom outer diameter, inner diameter, thickness, special ring geometry, and 6-inch, 8-inch, and 12-inch wafer sizes. - Traceability and Engraving Options
Laser engraving for product numbers, logos, serial numbers, batch codes, and manufacturing dates can support production tracking and quality management. - Cleaning and Refurbishment Service
Suppliers that offer dicing ring cleaning or refurbishment can help extend ring life and reduce long-term operating costs. - Quality Control and Packaging
Quality documentation, inspection records, protective packaging, and stable shipment handling are important for consistent supply. - Long-Term Supply Capability
A good supplier should be able to support repeat orders, stable quality, and long-term production needs.
The right supplier should help reduce handling risk, improve process stability, and lower long-term operating cost.
YJ Corevia Dicing Ring Solutions
YJ Corevia provides precision dicing ring and wafer frame solutions for semiconductor back-end manufacturing. With long-term experience in stainless steel fabrication, CNC machining, polishing, laser engraving, cleaning, and custom production, YJ Corevia supports customers who need stable and reusable wafer handling components.
Our dicing ring solutions are designed for:
- Wafer dicing support
- Dicing tape mounting
- Post-dicing cleaning
- Inspection transfer
- Wafer frame cassette compatibility
- Custom semiconductor back-end applications
Available options include:
- Stainless Steel Dicing Rings
Durable stainless steel construction for reusable wafer dicing and back-end handling applications. - Standard and Custom Sizes
Available in 6-inch, 8-inch, and 12-inch sizes, with custom outer diameter, inner diameter, and thickness options. - Surface Finish Options
Polished or matte surface finishes can be selected based on cleaning needs, handling preference, and customer specifications. - Traceability Marking
Laser engraving can be used for logos, serial numbers, batch codes, product numbers, and manufacturing dates. - Cleaning and Refurbishment Support
Dicing ring cleaning and refurbishment services can help extend product life and reduce long-term operating costs. - Custom Production Requirements
Custom designs are available for specific equipment, wafer handling systems, and production requirements.
YJ Corevia helps customers improve wafer handling stability, traceability, and long-term process efficiency through standard and customized dicing ring solutions.
Conclusion
A dicing ring plays an important role in wafer dicing. It supports the dicing tape, stabilizes the wafer, helps maintain cutting accuracy, and keeps separated dies organized after cutting.
For semiconductor manufacturers, the right dicing ring should provide stable dimensions, good flatness, proper thickness, clean edge finishing, suitable surface finish, and reliable reuse performance.
YJ Corevia provides stainless steel dicing rings and custom wafer frame solutions for customers who need reliable, reusable, and process-compatible wafer support components. From standard 6-inch, 8-inch, and 12-inch dicing rings to custom dimensions, engraving, and cleaning services, YJ Corevia supports stable wafer handling and long-term semiconductor production efficiency.
Contact us today to discuss your wafer size, equipment requirements, surface finish preference, engraving needs, and custom dicing ring specifications.
Dicing Ring FAQ
1. What is a dicing ring?
A dicing ring is a rigid support frame used to hold dicing tape during wafer dicing. It helps keep the wafer stable while it is cut into individual dies.
2. What is a dicing ring used for?
A dicing ring supports dicing tape, stabilizes the wafer, reduces movement during cutting, and keeps separated dies organized after dicing.
3. Is a dicing ring the same as a wafer frame?
They may refer to similar products, but the focus is different. “Wafer frame” is a broader term, while “dicing ring” usually refers to the frame used specifically during wafer dicing.
4. What is the difference between a dicing ring and dicing tape?
Dicing tape is the adhesive film that holds the wafer. The dicing ring is the rigid frame that supports the tape during wafer dicing.
5. What material is used for dicing rings?
Dicing rings may be made from stainless steel, metal, or plastic. Stainless steel is commonly used when rigidity, durability, reusability, and cleaning performance are required.
6. Why is stainless steel used for dicing rings?
Stainless steel offers rigidity, dimensional stability, durability, and resistance to repeated handling. It is suitable for reusable dicing rings used in semiconductor back-end processing.
7. Can dicing rings be reused?
Yes. Stainless steel dicing rings can usually be reused after tape removal, cleaning, inspection, and proper maintenance.
8. What sizes are available for dicing rings?
Common sizes include 6-inch, 8-inch, and 12-inch dicing rings. Custom dimensions can also be made according to wafer size, equipment, and process needs.
9. What is a custom dicing ring?
A custom dicing ring is made according to specific requirements such as outer diameter, inner diameter, thickness, material, surface finish, engraving, or equipment compatibility.
10. Does YJ Corevia provide custom dicing rings?
Yes. YJ Corevia provides custom dicing ring and wafer frame solutions, including stainless steel material, custom size, surface finish, CNC machining, laser engraving, and cleaning support.
